アトランティックパーツリスト atlantic parts

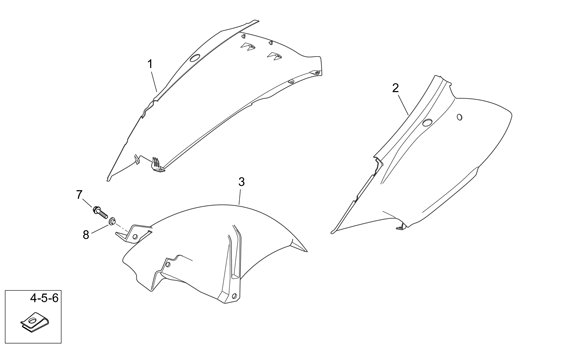

４０ リアフェアリング、マッドガード
| Position | Year | Countries | Colours | Description | Partno |
| 1 | 3-4 | EU-JJ-UK | blue | RH rear fairing, blue | AP8168520 |
| 1 | 3 | ME-SP | blue | RH rear fairing, blue | AP8168643 |
| 1 | 5 | - | b.main | RH rear fairing, blue | AP8179050 |
| 1 | 4 | EU-JJ-UK | coast | RH rear fairing, cyan | AP8178384 |
| 1 | 4 | ME-SP | coast | RH rear fairing, cyan | AP8178386 |
| 1 | 6 | - | c.av | RH rear fairing, cyan | AP8179251 |
| 1 | 3 | CN-EU-JJ-UK | green | RH rear fairing, green | AP8168542 |
| 1 | 3 | ME-SP | green | RH rear fairing, green | AP8168647 |
| 1 | 5 | - | g.side | RH rear fairing, green | AP8179052 |
| 1 | 3 | CF-CN-EU-JJ-UK | grey | RH rear fairing, grey | AP8168531 |
| 1 | 3 | ME-SP | grey | RH rear fairing, grey | AP8168645 |
| 1 | 3-4 | EU-JJ-UK | lead | RH rear fairing, grey | AP8168722 |
| 1 | 3 | ME-SP | lead | RH rear fairing, grey | AP8168724 |
| 1 | 4 | EU-JJ-UK | magnet | RH rear fairing, grey | AP8178375 |
| 1 | 4 | ME-SP | magnet | RH rear fairing, grey | AP8178377 |
| 1 | 5 | - | g.peak | RH rear fairing, grey | AP8179047 |
| 1 | 3 | CF-EU-JJ-UK | red | RH rear fairing, red | AP8158385 |
| 1 | 3 | ME-SP | red | RH rear fairing, red | AP8168641 |
| 1 | 5 | - | v.wh | RH rear fairing, white | AP8179054 |
| 2 | 3-4 | EU-JJ-UK | blue | LH rear fairing, blue | AP8168521 |
| 2 | 3 | ME-SP | blue | LH rear fairing, blue | AP8168644 |
| 2 | 5 | - | b.main | LH rear fairing, blue | AP8179051 |
| 2 | 4 | EU-JJ-UK | coast | LH rear fairing, cyan | AP8178385 |
| 2 | 4 | ME-SP | coast | LH rear fairing, cyan | AP8178387 |
| 2 | 6 | - | c.av | LH rear fairing, cyan | AP8179252 |
| 2 | 3 | CN-EU-JJ-UK | green | LH rear fairing, green | AP8168543 |
| 2 | 3 | ME-SP | green | LH rear fairing, green | AP8168648 |
| 2 | 5 | - | g.side | LH rear fairing, green | AP8179053 |
| 2 | 3 | CF-CN-EU-JJ-UK | grey | LH rear fairing, grey | AP8168532 |
| 2 | 3 | ME-SP | grey | LH rear fairing, grey | AP8168646 |
| 2 | 3-4 | EU-JJ-UK | lead | LH rear fairing, grey | AP8168723 |
| 2 | 3 | ME-SP | lead | LH rear fairing, grey | AP8168725 |
| 2 | 4 | EU-JJ-UK | magnet | LH rear fairing, grey | AP8178376 |
| 2 | 4 | ME-SP | magnet | LH rear fairing, grey | AP8178378 |
| 2 | 5 | - | g.peak | LH rear fairing, grey | AP8179048 |
| 2 | 3 | CF-EU-JJ-UK | red | LH rear fairing, red | AP8158386 |
| 2 | 3 | ME-SP | red | LH rear fairing, red | AP8168642 |
| 2 | 5 | - | v.wh | LH rear fairing, white | AP8179055 |
| 3 | - | - | - | Rear mudguard, black | AP8156023 |
| 4 | - | - | - | Clip | 254485 |
| AP8102376 | |||||
| 5 | - | - | - | Clip | AP8102375 |
| 6 | - | - | - | Screw clip | AP8201763 |
| 7 | - | - | - | Screw w/ flange | AP8152281 |
| 8 | - | - | - | T bush | AP8121795 |
