アトランティックパーツリスト atlantic parts

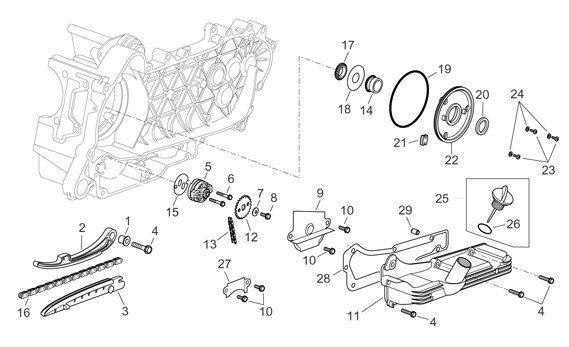

３８ オイルタンク、オイルポンプ
| Position | Year | Countries | Versions | Description | Partno |
| 1 | - | - | - | Spacer | AP8580090 |
| 2 | - | - | 250 | Chain tensioner rod | 840344 |
| AP8577030 | |||||
| 2 | - | - | 125-200 | Chain tensioner rod | 840510 |
| AP8580156 | |||||
| 3 | - | - | 250 | Chain tensioner sliding block | AP8577031 |
| 3 | - | - | 125-200 | Chain tensioner sliding block | 828308 |
| AP8580157 | |||||
| 4 | - | - | - | Screw w/ flange | AP8550173 |
| 5 | - | - | - | Oil pump assy. | AP8580102 |
| 6 | - | - | - | Screw w/ flange | AP8551029 |
| 7 | - | - | - | Belleville spring | 436695 |
| AP8550439 | |||||
| 8 | - | - | 125-200 | Screw | 833722 |
| AP8580212 | |||||
| 8 | - | - | 250 | Screw w/ flange | 833722 |
| AP8550556 | |||||
| 9 | - | - | - | Oil bulhead | AP8580070 |
| 10 | - | - | - | Screw w/ flange | 484123 |
| AP8551045 | |||||
| 11 | 5 | - | 250 | Motor oil cup | 846096 |
| AP8553005 | |||||
| 11 | 6 | - | 250 | Motor oil cup | 846096 |
| AP8553005 | |||||
| 11 | 3-4-5-6 | - | 125-200 | Motor oil cup | 843761 |
| AP8580175 | |||||
| 11 | 4 | - | 250 | Motor oil cup | 843761 |
| AP8580175 | |||||
| 11 | 5 | - | 250 | Motor oil cup | 843761 |
| AP8580175 | |||||
| 12 | - | - | - | Oil pump gear | 287913 |
| AP8550380 | |||||
| 13 | - | - | - | Oil pump chain | 82649R |
| AP8580131 | |||||
| 14 | - | - | - | Oil pump control pinion | 82783R |
| AP8580072 | |||||
| 15 | - | - | - | Gasket | 847929 |
| AP8580092 | |||||
| 16 | - | - | 250 | Camshaft chain | 82723R |
| AP8577032 | |||||
| 16 | - | - | 125-200 | Camshaft chain | 82644R |
| AP8580130 | |||||
| 17 | - | - | 125-MB | Timing system chain pinion cpl | 82782R |
| AP8577033 | |||||
| 17 | - | - | 250 | Timing system chain pinion cpl | 82782R |
| AP8577033 | |||||
| 17 | - | CF-CN | 200-MD | Timing system chain pinion cpl | 82782R |
| AP8577033 | |||||
| 17 | - | EU-JJ-ME-SP-UK | 200-MF | Timing system chain pinion cpl | 82782R |
| AP8577033 | |||||
| 17 | - | EU-JJ-ME-SP-UK | 200-ME | Timing system chain pinion cpl | 825595 |
| AP8580117 | |||||
| 17 | - | CF-CN | 200-MC | Timing system chain pinion cpl | 825595 |
| AP8580117 | |||||
| 17 | - | - | 125-MA | Timing system chain pinion cpl | 825595 |
| AP8580117 | |||||
| 18 | - | - | - | Oil seal washer | 483918 |
| AP8580077 | |||||
| 19 | - | - | - | O-ring | 825620 |
| AP8580118 | |||||
| 20 | - | - | - | Gasket ring | 82538R |
| AP8580113 | |||||
| 21 | - | - | - | Oil pump chain drift | 434345 |
| AP8550522 | |||||
| 22 | - | - | - | Timing system cover | 847116 |
| AP8580169 | |||||
| 23 | - | - | - | Hex socket screw | 15585 |
| AP8550155 | |||||
| 24 | - | - | - | Washer | AP8580107 |
| 25 | - | - | - | Oil filler plug | 846819 |
| AP8580144 | |||||
| 26 | - | - | - | Gasket | 479986 |
| AP8550417 | |||||
| 27 | - | - | - | Oil bulhead | AP8580083 |
| 28 | 5 | - | 250 | Gasket | 846098 |
| AP8553006 | |||||
| 28 | 6 | - | 250 | Gasket | 846098 |
| AP8553006 | |||||
| 28 | 4 | - | 250 | Gasket | 830128 |
| AP8580185 | |||||
| 28 | 3-4-5-6 | - | 125-200 | Gasket | 830128 |
| AP8580185 | |||||
| 28 | 5 | - | 250 | Gasket | 830128 |
| AP8580185 | |||||
| 29 | - | - | - | Locating dowel | 277916 |
| AP8551015 |
